Alkaline Phenolic Resin
Alkaline Phenolic Resin
Introduction
The no-bake phenolic resin process, also known as the α-set method, involves blending sand with alkaline phenolic resin and organic ester hardener to produce molds and cores that cure at ambient temperature. Shengquan alkaline phenolic resin is widely utilized due to its exceptional comprehensive properties.
Specification
| Type | Density( 25℃)g/cm³ | Viscosity ( 25℃)≤ mPa.s | F.F.(%) | PH |
Remark |
Product |
| JF-103A | 1.20~1.30 | ≤ 150 | ≤ 0.1 | ≥ 12 | Eco-Friendly and High Strength Shelf Life(<25℃ ) of 3 Months | General Specification of JF Series Alkaline Phenolic Resin: |
| JF-103B | 1.20~1.30 | ≤ 150 | ≤ 0.1 | ≥ 12 | Less Odor and High Strength Shelf Life (<25℃℃ ) of 3 Months | General Specification of JF Series Alkaline Phenolic Resin: |
| JF-200 | 1.20~1.30 | ≤ 150 | ≤ 0.1 | ≥ 12 | Fast Curing and High strength Shelf Life (<25°℃ ) of 3 Months | General Specification of JF Series Alkaline Phenolic Resin: |
| Type | Appearance | Density(25℃)g/cm³ | Viscosity(25℃)≤ mPa.s | Ester content(%) | Remark | Product |
| HQG1 | Colorless Transparent Liquid | 1.0~1.25 | ≤10 | ≥ 98 | Fast Curing, and Used in Combination with Hqg20 | General Specification of HOG Series Hardeners: |
| HQG10 | 1.0~1.25 | ≤10 | ≥ 98 | Stripping in 10min Under Normal Temperature, Andused in Combination with Hqg20 | General Specification of HOG Series Hardeners: | |
| HQG20 | 1.0~1.25 | ≤10 | ≥ 98 | Stripping in 20min Under Normal Temperature | General Specification of HOG Series Hardeners: | |
| ZQ0 | Colorless Transparent Liquid | 1.0~1.25 | ≤20 | ≥ 98 | Stripping in 20min Under Sand Temperature of 0°C | General Specification of ZO Series Hardeners: |
| ZQ10 | 1.0~1.25 | ≤20 | ≥ 98 | Stripping in 20min Under Sand Temperature of 109°C | General Specification of ZO Series Hardeners: | |
| ZQ20 | 1.0~1.25 | ≤25 | ≥ 98 | Stripping in 20min Under Sand Temperature of 20℃ | General Specification of ZO Series Hardeners: |
Applications

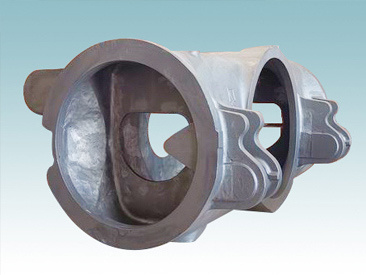

Applicable to the production of steel casting, iron casting, non-ferrous alloy casting.
Product Series
 |
 |
 |
|
| JF-103A High Strength Alkaline Phenolic Resin | JF-200H Eco-friendly Alkaline Phenolic Resin |
